The Features of Adjustable Fork Pallet Truck
- Fork width can be adjusted from 345mm to 675mm, it makes it suitable for all kinds of trays.
- The adjust handle is on the side, which is more convenient
- The adjustment is smooth and effortless.
- Handle foldable
规格Guide to Safety Operation

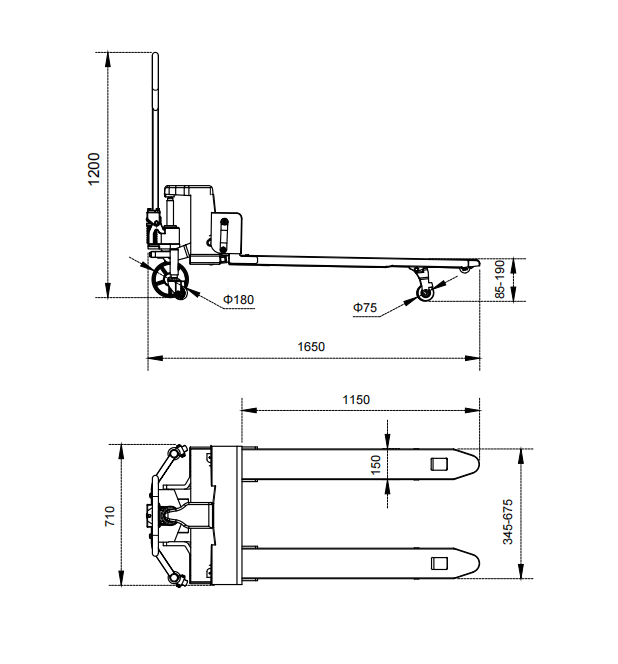

| i-Lift号 | ||
| 模型 | AFPT1000E | |
| 装载能力 | 公斤（磅） | 1000(2200) |
| 负荷中心 | 毫米（英寸） | 600(23.6) |
| LxWxH | 毫米（英寸） | 1650x710x1200(65x28x47.2) |
| 货叉长度 | 毫米（英寸） | 1220(48) |
| 单个货叉宽度 | 毫米（英寸） | 150(5.9) |
| 可调货叉宽度 | 毫米（英寸） | 345~675(13.6~26.6) |
| 最大货叉高度 | 毫米（英寸） | 180(7.1) |
| 最小货叉高度 | 毫米（英寸） | 70(2.8） |
| 前载滚筒 | 毫米（英寸） | Φ75x95(Φ2.95x3.74) |
| 驱动轮 | 毫米（英寸） | Φ180x50(Φ7.08x1.97) |
| 净重 | 公斤（磅） | 122(268.4) |
为了安全操作手动码垛车，请在使用前阅读此处和码垛车上的所有警告标志和说明。
- Do not operate the pallet truck unless you are familiar with it and have been trained or authorized to do so.
- Do not operate the truck unless you have checked its condition. Give special attention to the wheels, the handle assembly, the forks, the distance between the forks, lift, and the lower control.
- Do not use the truck on sloping ground.
- Never place any part of your body in the lifting mechanism or under the forks or load. Do not carry passengers.
- We advise that operator should wear gloves and safety shoes
- Do not handle unstable or loosely stacked loads.
- Do not overload the truck.
- When possible, operate the truck with maximum distance between forks.
- Always place loads centrally across the forks and not at the end of the forks.
- The capacity of the truck assumes an evenly distributed load with the center of the load being at the halfway point of the length of the forks.
- Lower the forks to lowest height when the truck is not being used.
- In other specific conditions, the operator should take extra care in operating the truck.
