旋转工作台特点：
- 自动将负载保持在理想高度以进行手动装卸
- 不需要电源
- 稳定的设计不需要地板滞后。
- 小底座允许作品在任何位置靠近工业剪叉式升降机。
- 无需叉车即可通过可选的工作台移动器轻松移动到任何位置。

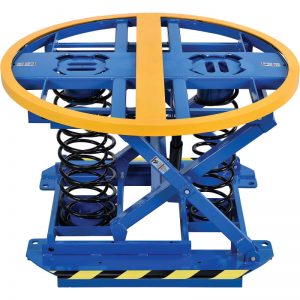

Compare with general lift tables, this QSL1000 series Spring Level Loader and QAL1000 airbag pallet positioner is a rotating lift table which can automatically maintain a load at the ideal height for manual loading and unloading without any electric or any manual operation, this lift table with rotate plate can automatically maintain at the top of the load as the working height to reduce the discomfort of long-term bending just with the spring force of the spring/airbag and the gravity of the cargo.
视频展示：
i-Lift号 1313601 1313604 模型 QSL1000 QAL1000 容量 公斤（磅） 200-2000(440-4400) 100-2000(220-4400) 压缩高度 毫米（英寸） 240(9.4) 265(10.4) 延伸高度 毫米（英寸） 710(28) 710(28) 旋转环，外径 毫米（英寸） 1110(44) 1110(44) 旋转环，内径 毫米（英寸） 1035(40.7) 1035(40.7) 基架长度 毫米（英寸） 1150(45.3) 1150(45.3) 基架宽度 毫米（英寸） 930(36.6) 930(36.6) 选项 升降台移动器
QAL1000 详细信息：
It has an air charging port and pressure regulating knob, so you can adjust the height by adjust the air pressure. This can make up for the problem of oil leakage from ordinary Stationary Lift table
QSL1000 Details:
The frame of the Spring Activated Lift Table can handle loads of up to 4400 lbs. In order to adapt the unit for different pallet loads, the springs are changed. The springs are chosen to match the weight and height of a fully loaded pallet. A unit may have one to three springs. Each time the pallet weight or pallet height is changed, the springs may also need to be changed. Instructions will show you how the springs are selected. Each spring is color-coded with paint mark at one end.

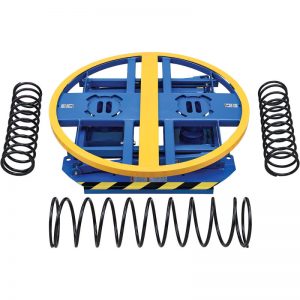

它包括3个不同大小的弹簧，您可以根据需要的容量和高度将其自由分组。配备叉车“口袋”，可在不同工作区域之间运输。对于没有叉车的区域，“升降台移动器”也是可选的。

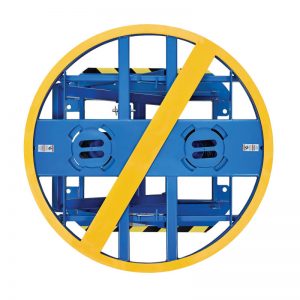

Load weight range is 440 lbs. to 4,400 lbs. The Spring Pallet Positioner allows for 360° rotation for easy load access. Fork pockets also come standard for repositioning of theTurntable platform.
和有什么区别 安全气囊装载机或弹簧剪式升降台？
- 稳定: compared with the Spring Pallet lever loader , the Airbag Level Loader is more stable, not easy to bump, and the shock absorption performance is better.
- 不同的档位调整方法: the Spring Pallet scissor Lift table has 3 springs, which can only be combined into different three loads by different combinations of three springs; The Airbag Pallet handing lift table can be adjusted arbitrarily by changing the air pressure.
- 负载范围 is different: the minimum load of spring Industrial Scissor Liftsis 440KG, the minimum load of air Skid Carousel Positioner can be less than 100KG, or even smaller.
- 不同的调整方法： it is convenient to adjust the load of the airbag Pallet leveller. It only needs to deflate and inflate, and it can be completed under the condition of heavy objects on the table, without removing the table. But the spring Pallet Positioner needs to be removed from the table to replace the spring collocation to adjust the load.
- 安全气囊平台需要配备 气泵。
It is also a rotating platforma it can realize the operation of each side by rotating the surface of the spring lifters, so the workers can easily complete all loading and unloading works just keep the same posture. Not only improves productivity but also protects workers from long time bending.

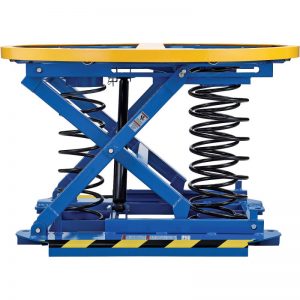

As weight is added to the Spring Actuated Level Loader , it causes the springs to compress, lowering the height of the platform. As weight is removed, the springs expand, raising the height of the lift and rotate table . Once properly calibrated for the maximum load weight, the lift will automatically stay at an ergonomic height.
